diesel and gasoline Mazda piston ring

Home > Piston ring > Mazda > Mazda piston ring

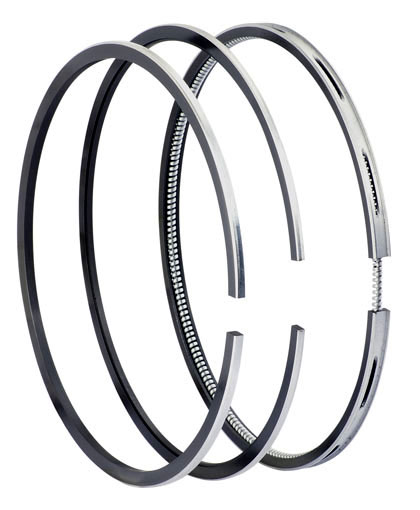

Mazda piston ring

Product Name:
Mazda piston ring
Model No.:
Attachment download

Product Abstract:

Mazda piston ring diameter from 68 to 109 mm

Product Description

MAZDA
Engine Type	Vehicle Model Chassis Type	Cyl. No.	Piston Ring Size (mm)				OEM No.
Engine Type	Vehicle Model Chassis Type	Cyl. No.	Position	D	B	T	OEM No.
PB	Familia 1000	4	1	68	2	3	0249-23-170A
	SPB SPA55V		2	68	2	3	0249-23-206
	Truck		O	68	4	3.1
	BPA55 BPB55
B1	KIA PRIDE	4	1	68	1.2	2.5	B1Y0-11-SCO
			2	68	1.5	3.1
			O	68	3	2.95
TA	D1100 DTA81	4	1	70	2.5	3.1	0106-11-999
	DTA81P DTA81V		2	70	2.5	3.1
			O	70	4	3.1
TB	Familia 1200	4	1	70	2	3.1	0221-23-999
TB	PA		2	70	2	3.1	0271-23-206
PC	Familia Presto		O	70	4		0268-23-206
E1	323	4	1	70	1.5	3.1	8698-23-130
PC	6CV		2	70	1.5	3.1
			O	70	4	3.1
E1	Familia	4	1	70	1.2	3.15	E101-23-130
			2	70	1.5	3.1
			O	70	4	3.2
E1-A	Familia	4	1	70	1.5	2.8	E103-23-130A
			2	70	2	3.1
			O	70	4	3.2
B3	CANVAS TOP	4	1	71	1.2	2.47	B3Y0-11-SCO
			2	71	1.5	3.1	B3Y1-11-SCOA
			O	71	3	2.92
TC	Familia 1300	4	1	73	2	3.1	0324-23-130
	STB,STBU,STC		2	73	2	3.1	0324-23-175
	FA3TS,FA2T,55,65		O	73	4	3.05
TC	BS7C,HSTBU		1	73	1.5	3.1	8034-23-130
(NEW)	Truck		2	73	1.5	3.1	8034-23-130A
	BTA67		O	73	4	3.05
JF	Truck	6	1	74	1.5	3.1	JFY1-11-SCO
			2	74	1.5	3.4
			O	74	4	3.1
UA	D1500 DUA12P	4	1	75	2.5	3.3	0107-11-999
UB	DUB91		2	75	2.5	3.3	0603-23-170
	Craft		O	75	4	3.3	0603-23-999
	DUC9 DUC9V
UA (NEW)	NEW Craft	4	1	75	2	3.3	0571-23-180
			2	75	2	3.3
			O	75	4	2.8
K8	MX-3	6	1	75	1.5	2.7	K8Y1-11-SCOA
			2	75	1.5	3.2
			O	75	3	2.55
Z5	Protege	4	1	75.3	1	2.7	Z5YO-11-SCO
			2	75.3	1.2	3.2
			O	75.3	2.5	2.55
UC	Familia	4	1	77	1.5	3.2	8569-23-130
	(323,GLC)		2	77	1.5	3.2	8569-23-130A
			O	77	4	3.1
E3	For Leaded	4	1	77	1.2	3.2	E301-23-130
	Gasoline		2	77	1.5	3.2	E301-12-130A
	Familia(323GLC)		O	77	4	3.2
	BD1031
E5	Familia(323GLC)
E3	For Leaded	4	1	77	1.5	3.1	E302-23-130A
E3	Gasoline		2	77	2	3.3
E5	LASER		O	77	4	3.2
UB	Luce 1500	4	1	78	2	3.6	0222-23-130
	SUA SUAV		2	78	2	3.6	0222-23-206
			O	78	4	3.1
VB	Luce(929)	4	1	78	1.5	3.6	0494-23-130
	Ford Courier		2	78	1.5	3.6	3763-23-130
			O	78	4	3.1	0290-23-130/131
NA	Capella(626)						0305-23-130
NA	Proceed
NA	Luce-1800	4	1	78	1.2	3.6	8170-23-130
(NEW)			2	78	1.5	3.6	8170-23-130A
			O	78	4	3.1	8658-23-130
							H604-23-130
NA	Luce(626)	4	1	78	1.5	3.4	H617-23-130
			2	78	2	3.6
			O	78	4	3.15
B6	Familia Van	4	1	78	1.5	3.1	B6Y0-11-SCOA
	Capella		2	78	1.5	3.4
	Cango Van		O	78	4	3
B62A	Familia Wagon	4	1	78	1.5	3.1	B6Y3-11-SCOA
			2	78	1.5	3.4
			O	78	3	3.05
MA	Luce Van Deluxe	4	1	80	2	3.6	0453-23-130
VC	1800(929)		2	80	2	3.6	0453-23-130B
	LA2VV		O	80	4	3.25	3975-23-130
	Cosmo
MA (NEW)	Luce (929L)	4	1	80	1.2	3.5	D97Z-6149
	Cocsmo (121L)		2	80	1.5	3.6	8682-23-130
	Capella (626)		O	80	4	3.25	8682-23-130A
VC	Ford Courier						HE18-23-130
(NEW)
MA	For Leaded	4	1	80	1.5	3.5	HE05-23-130
VB	Gasoline		2	80	2	3.6
(Bore up)	B2000		O	80	4	3.25
	626(2000)
	Cosmo Luce
F6	626FWD	4	1	81	1.5	3.1	F601-23-130
			2	81	1.5	3.6
			O	81	4	3.2
VA		4	1	82	2.5	3.6	0164-11-999
			2	82	2.5	3.6
			O	82	4.5	3.6
O552	0268-23-206	4	1	82	2	3.6	1352-23-130
EVB			2	82	2	3.6	0552-23-180
VA			O	82	4.5	3.3	0552-23-190
BP		4	1	83	1.5	3.3	BPY1-11-SCO
			2	83	1.5	3.6
			O	83	3	2.8
FS		4	1	83	1.2	3.1	FSY2-11-SCO
			2	83	1.5	3.6
			O	83	3	3.14
KL		6	1	84.5	1.5	3.1	KLY2-11-SCOA
			2	84.5	1.5	3.55
			O	84.5	3	2.7
F8		4	1	86	1.5	3.3	F801-23-130
F8			2	86	1.5	3.8	F801-23-130
FE			O	86	4	3.25	F2Y1-11-SCO
FE							FEY1-11-SCO
JE		V-6	1	90	1.5	3.3	JEY-11-SCO
			2	90	1.5	3.8
			O	90	4	3.25
G6		4	1	92	1.5	3.3	G601-11-SCOA
			2	92	1.5	4.1
			O	92	4	3.25
A	B2300	4	1	96	1.5	4	ZZM0-23-130
			2	96	1.5	4	ZZM9-23-130
			O	96	4	3.25
PN		4	1	78	2	2.9	PNY2-11-SCO
			2	78	1.5	3.2
			O	78	3	3.25
R2	Bongo Brawny	4	1	86	2	3.5	R201-23-130B
	E2200 SA/SB		2	86	2	3.6
	E2200SR		O	86	4	3.9
RFX	Capella	4	1	86	2	3.1	RF01-23-130
			2	86	2	3.6	RFYO-11-SCOD
			O	86	4	4.35
R2	Capella	4	1	86	2	3.1	R2B6-11-SCO
(NEW)			2	86	2	3.6
			O	86	3	3.25
S2	Luce (929L)	4	1	88.9	2.383	3.5	Related Products Mazda piston ring MAZDA PN Piston Ring MAZDA R2 Piston Ring MAZDA RFX Piston Ring MAZDA R2 Piston Ring MAZDA XA Piston Ring MAZDA YA Piston Ring MAZDA S2 Piston Ring MAZDA XA(NEW) Piston Ring MAZDA XB Piston Ring Inquiry Information Subject: Content: Telephone Number: Your E-Mail: *Confirm Text: [Return Home] [Print] [Go Back] Piston Bedford BMW Catterpillar Cummins Daewoo Daf Daihatsu Deutz(K.H.D) Fiat/iveco Ford Hino Honda Hyundai Isuzu John deer Kamaz Kia Komatsu Landrover Liebherr Lister Lombardini Mack Man Mazda Mercedes Benz) Mitsubishi MTZ (Belarus) MWM Nissan Opel Perkins Peugeot Renault/RVI Scania Steyr/Howo Suzuki Toyota Volvo VW Yanmar Zetor Piston ring ASIA Bedford BMW Caterpillar Chrysler Cummins Daewoo Detroit Daf Daihatsu Deutz (KHD) Fiat/Iveco Ford Hino Honda Hyundai Isuzu John Deere Kia Komatsu Man Mazda Mercedes-benz Mitsubishi Nissan Opel Perkins Peugeot Renault/RVI Saviem Scania Steyr Subaru Suzuki Toyota Volkswagen Volvo Yanmar Marine Air compressor Cyliner Liner Caterpillar Cummins Daewo Daf Daihatsu Deutz(K.H.D) FIAT/IVECO Ford Hino Hyundai IFA Isuzu JKC John Deere Kamaz Kia Komatsu Leyland Liser Lombardini Mack Man Mazda Mercedes-Benz Mitsubishi MTZ (Belarus) MWM Nissan Opel Perkins Peugeot Renault/RVI Saviem Scania Steyr Toyota Volvo VW Zetor Gasket kits Engine bearing Toyota Yanmar Volvo volkswagen Engine head & block Copyright © 1997 - 2012 Guangzhou LPR auto parts ltd All Rights Reserved.
