Cylinder liner

cylinder liner
2011-12-09 21:37:45

cylinder liner

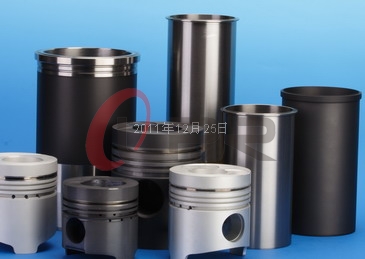

 A cylinder liner is a cylindrical part to be fitted into an engine block to form a cylinder. It is one of the most important functional parts to make up the interior of an engine.
This is called Cylinder liner in Japan, but some countries(or companies) call this Cylinder sleeve.

These are main functions of Cylinder Liners.



(1)Formation of sliding surface




The cylinder liner, serving as the inner wall of a cylinder, forms a sliding surface for the piston rings while retaining the lubricant within. The most important function of cylinder liners is the excellent characteristic as sliding surface and these four necessary points.

(1)High anti-galling properties
(2)Less wear on the cylinder liner itself
(3)Less wear on the partner piston ring
(4)Less consumption of lubricant




(2)Heat transfer





Figure 2. Heat transfer

The cylinder liner receives combustion heat through the piston and piston rings and transmits the heat to the coolant.




(3)Compression gas sealing





Figure3.Providing airtightness of cylinder liner

The cylinder liner prevents the compressed gas and combustion gas from escaping outside.


It is necessary that a cylinder liner which is hard to transform by high pressure and high temperature in the cylinder.




A cylinder wall in an engine is under high temperature and high pressure, with the piston and piston rings sliding at high speeds. In particular, since longer service life is required of engines for trucks and buses, cast iron cylinders that have excellent wear-resistant properties are only used for cylinder parts.

Also, with the recent trend of lighter engines, materials for engine blocks have been shifting from cast iron to aluminum alloys. However, as the sliding surface for the inner cylinder, the direct sliding motion of aluminum alloys has drawbacks in deformation during operation and wear-resistance. For that reason, cast iron cylinder liners are used in most cases.
